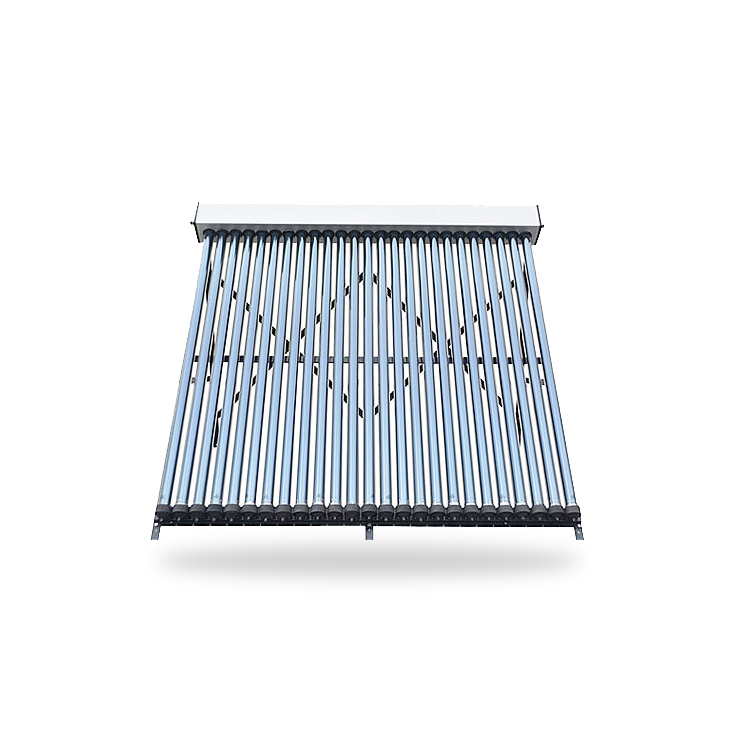

316L Stainless Steel Swimming Pool Solar Collector – high-performance vacuum tube system designed for large-scale swimming pool and commercial water heating projects. Durable, corrosion-resistant, energy-efficient, and low-maintenance, ensuring reliable year-round operation.
| 316L NON-PRESSURE SOLAR COLLECTOR SPECIFICATION (25 TUBES) | |||||
| Specification | |||||
| Model | 【GSR-25】 | ||||
| Inner Manifold Material | Marine Grade 316LStainless Steel (Superior anti-rust performance) | ||||
| Outer Shell Material of Manifold | SUS-304-2B stainless steel. | ||||
| Frame | Never rust al.alloy stand frame 1.8mm, 30° Ground Stand | ||||
| Insulation Layer | High-Density PU | ||||
| Tube Dimension | 58*1800mm *【25】 | ||||
| Tube to Tube Distance | 【75MM】 | ||||
| Tube Structure | All-Glass Double Deck Co-Axial Structure | ||||
| Absorb er Area | 【3.325 m2】 | ||||
| Manifold Plumbing Connections | 1 1/4’’ | ||||
| Hailstone Resistance | Diameters of Less Than 25mm (1 inch) | ||||
| Life Span | Approximate to 15~25 Years | ||||
| NON-PRESSURE SOLAR COLLECTOR DATA SHEET | |||||
| Technical Parameters | |||||
| Model | Tube Specification | Absorb er Area | Package Volume | ||
| Diameter | Length | Pieces | (M2) | (M3) | |
| 【VERTICAL TYPE】 | |||||
| GSR-25 | 58mm | 1800mm | 25 | 3.325 | 0.37 |
Working Principle:
The 316L Stainless Steel Swimming Pool Solar Collector operates similarly to a non-pressure solar water heater. It functions as a manifold without a storage tank. The selective coating on the tubes absorbs solar energy and converts it into thermal energy to heat water. Typically used for swimming pool heating and large-scale commercial solar water heating projects, the water circulates continuously between the tank and the collector via a circulation pump.
Key Features:
* Round absorber surface of vacuum tubes passively tracks the sun throughout the day for efficient heat collection.
* Available in 20, 25, and 30-tube models, allowing flexible configurations to meet various project requirements.
* Environmentally friendly with low initial investment and high energy savings.
* Ideal for large-scale solar water heating system installations.
* Low maintenance and long-lasting performance.
Specifications:
*Vacuum Tube:Borosilicate glass 3.3, Φ58×1800mm
*Outer Shell:Stainless steel
*Inner Shell:316L stainless steel
*Insulation Layer:Polyurethane foam
*Support Frame:Corrosion-resistant aluminum alloy
Applications:

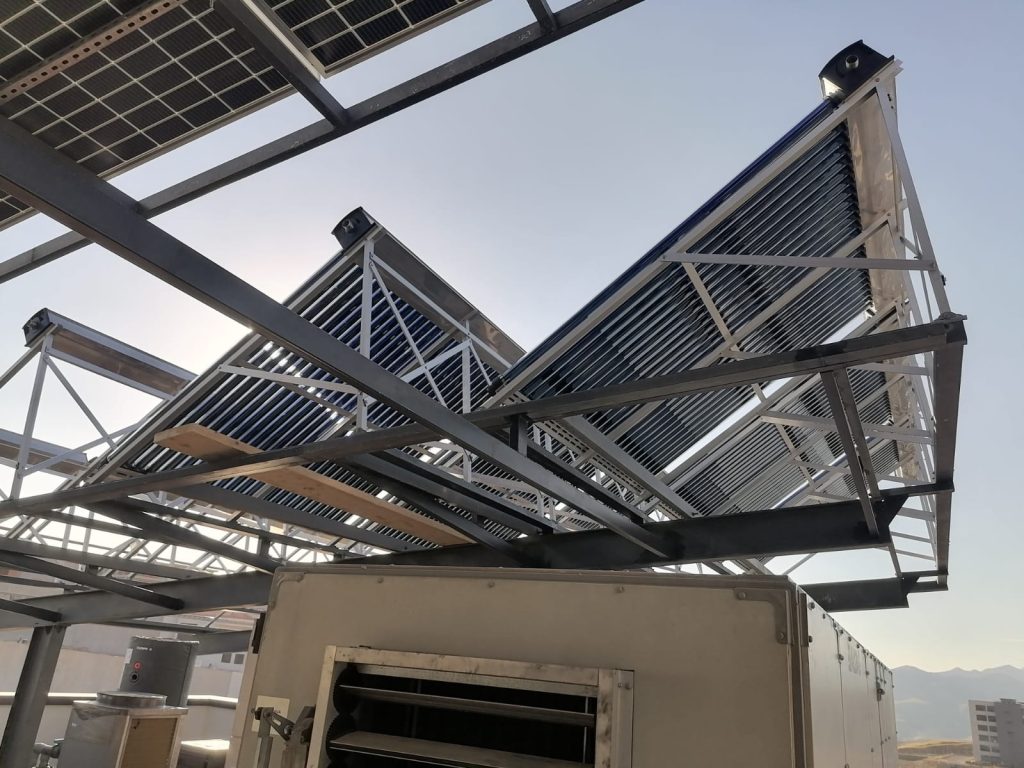

* Large-scale solar water heating projects: hotels, schools, hospitals, factories, apartments, swimming pools, etc.
* Suitable for hot climate regions with year-round operation.
